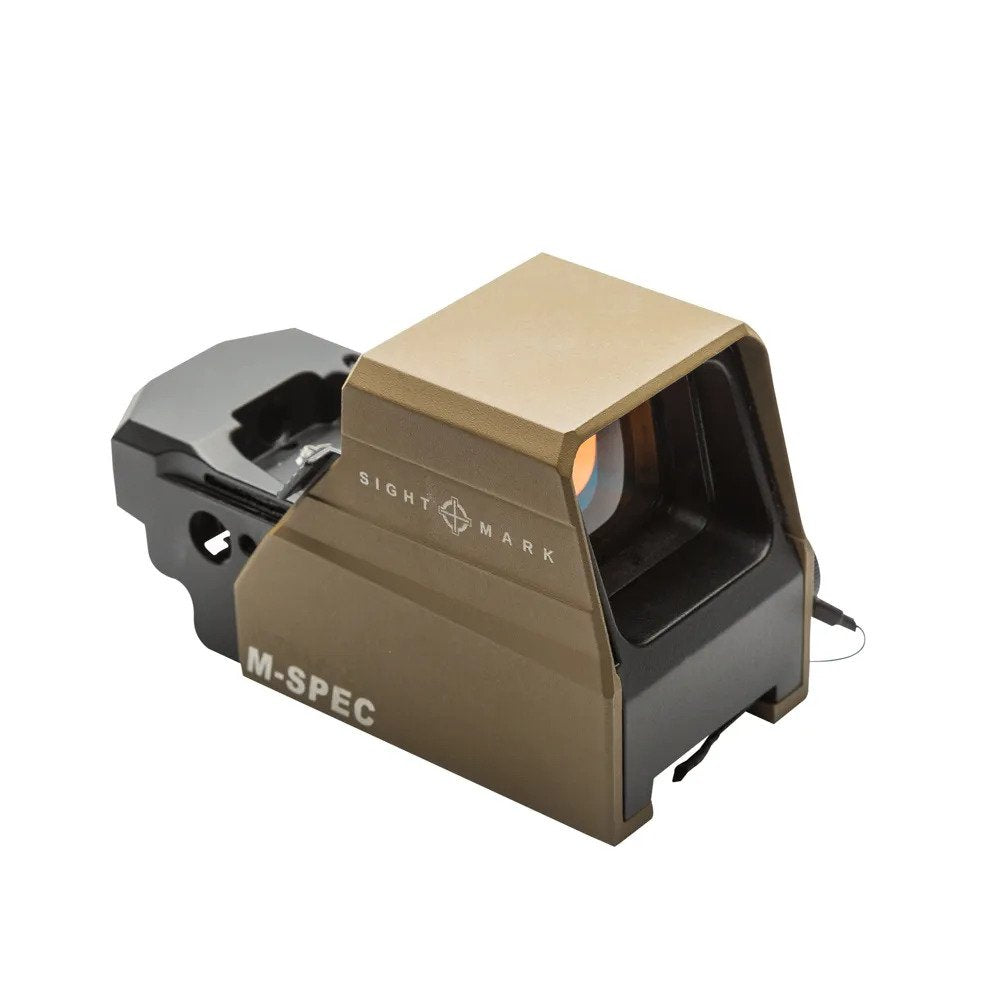

Specially designed to handle your hardcore shooting needs, the Sightmark RAM Series Ultra Shot M-Spec LQD Reflex Sight promises repeatable accuracy, ultra-fast target acquisition and rugged mil-spec reliability in virtually any environment. The Ultra Shot M-Spec’s premium wide-angle lens system with scratch resistant and anti-reflective red coating, patented integrated sunshade, illuminated red 65-MOA circle-dot reticle with 10 brightness settings, night vision brightness modes, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability, even in low light and when perfect sight alignment isn’t an option. Built tough, the Ultra Shot M-Spec Reflex Sight is shockproof, dustproof, IP68 waterproof, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminum protective shield and magnesium alloy body. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. The Ultra Shot M-Spec Reflex Sight also features a low battery indicator, motion sensing auto on/off activation, digital switch controls, 12-hour auto shut-off, locking quick-detach Picatinny mount and Sightmark’s lifetime warranty. The Ultra Shot M-Spec LQD Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and Neoprene cover.
US Pat. 10139197B1
- Patented integrated sunshade
- Advanced AR coated, scratch resistant lens system
- Locking quick-detach picatinny mount
- 12-hr. auto shut-off
- Motion sensing on/off activation
- Low battery indicator
- Red 65-MOA circle-dot reticle with 10 brightness settings
- Night vision brightness modes
- Parallax corrected optical system
- IP55 weather resistant protection
|Reticle, Type||65 MOA Circle Dot Crosshair (60 MOA circle w/ 5 MOA subtension, 2 MOA central dot)|
|Reticle Brightness Setting||Off, 1-10, NV|
|Objective overall dimension (mm)||33x24 mm|
|Elevation Range of Adjustment||120 MOA|
|Windage Range of Adjustment||120 MOA|
|Adjustment Value||1 MOA|
|Parallax Setting||10 / 9.1 (yd./m)|
|Body Material||Magnesium alloy|
|Maximum Recoil||.50 BMG|
|IP Rating (waterproof)||IP68 - waterproof to 40ft/12m|
|Shock-proof||Yes, 8ft / 2.4m|
|Lens Coating||AR red|
|Battery Life||200-2,000 Hours|
|Battery Voltage, V||3 V|
|Operating temperature, F/C||-22 to 160 / -30 to 71 F/C|
|Length (in/mm)||4.01 / 102 (in/mm)|
|Width (in/mm)||2.24 / 57 (in/mm)|
|Height (in/mm)||2.32 / 59 (in/mm)|
|Weight, oz.||10.2 oz.|
