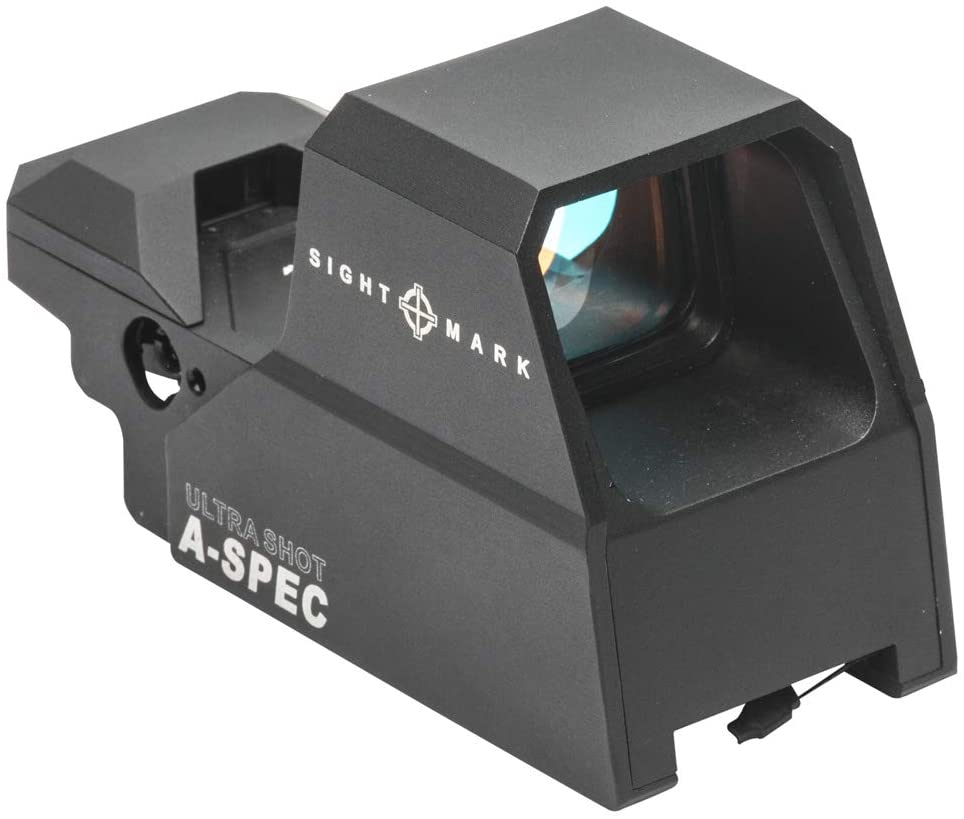

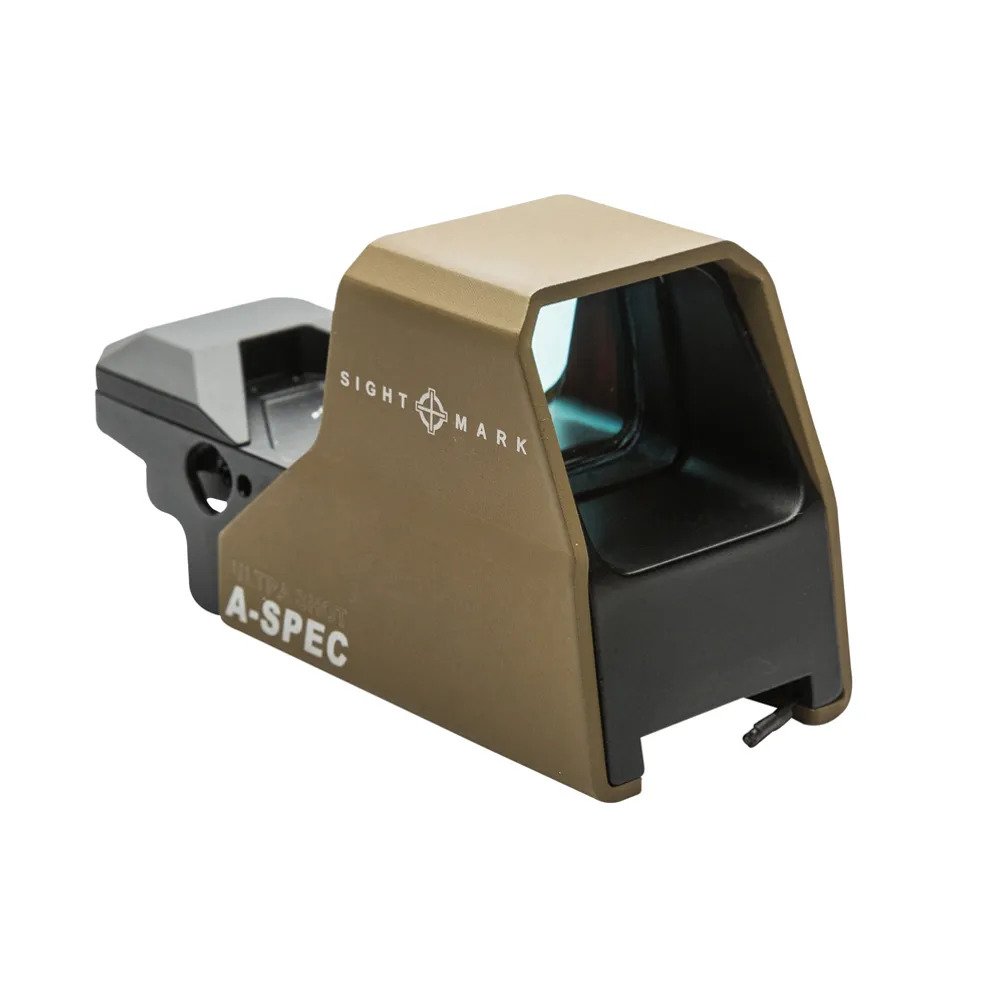

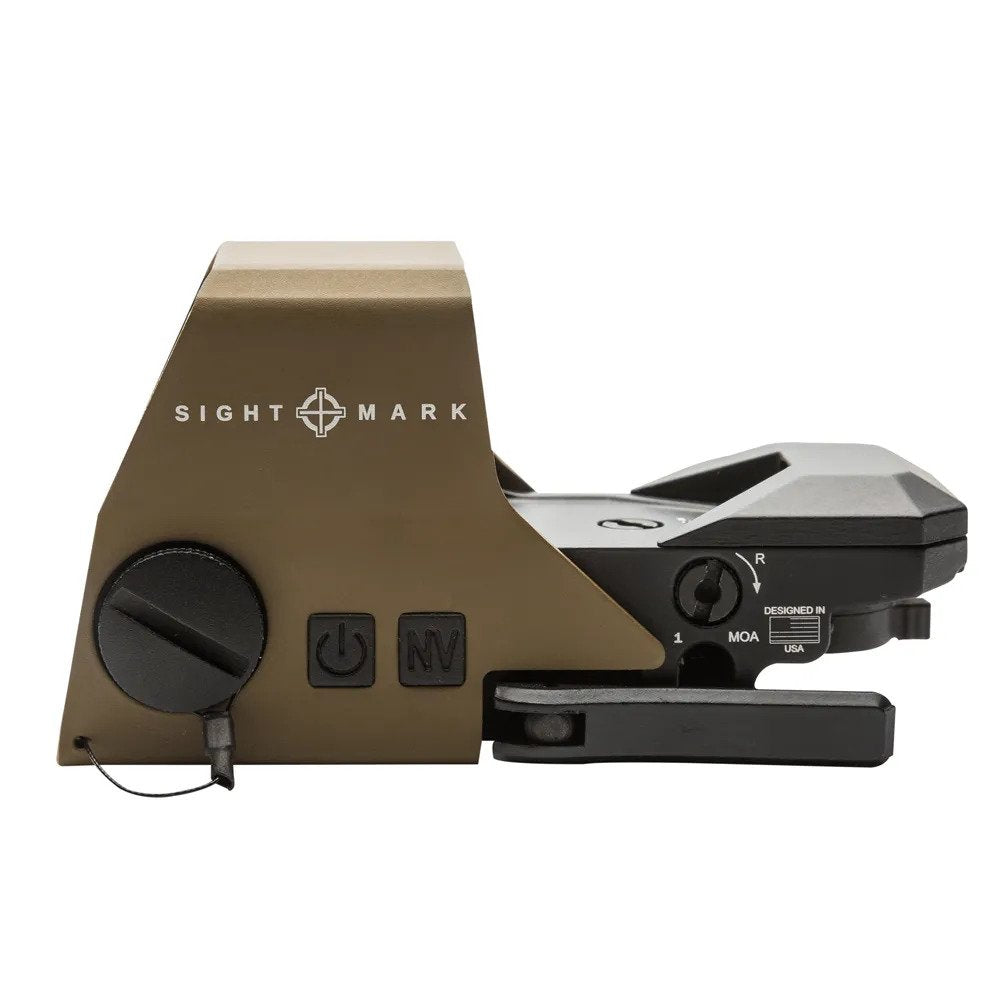

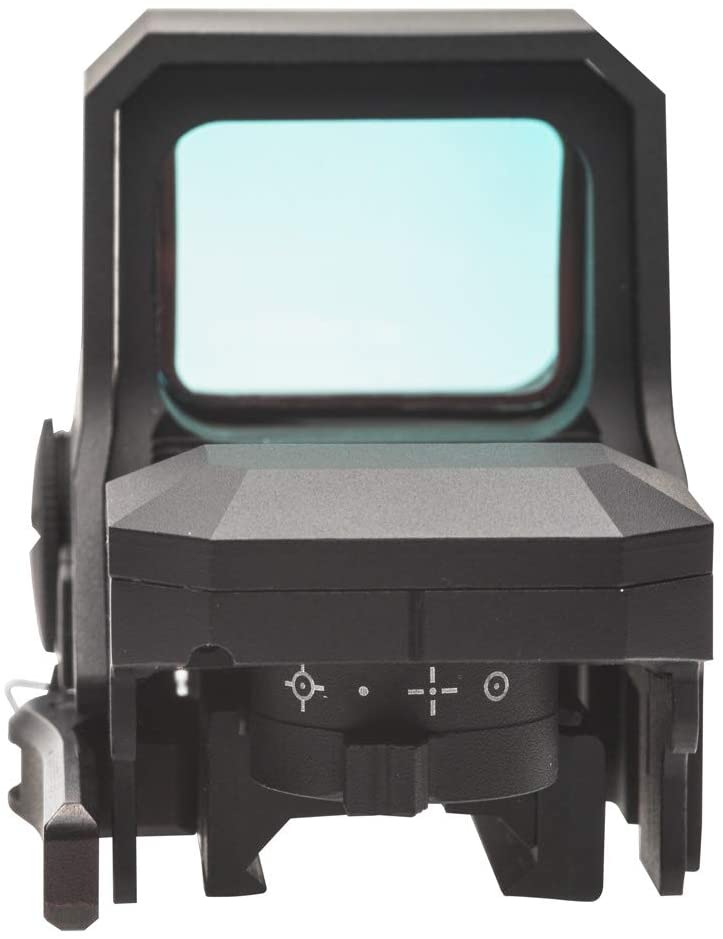

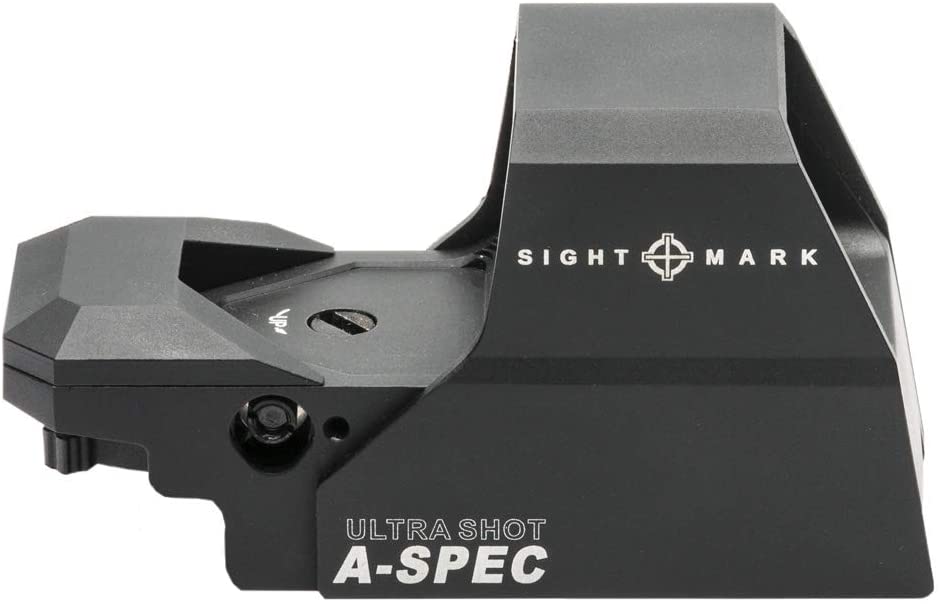

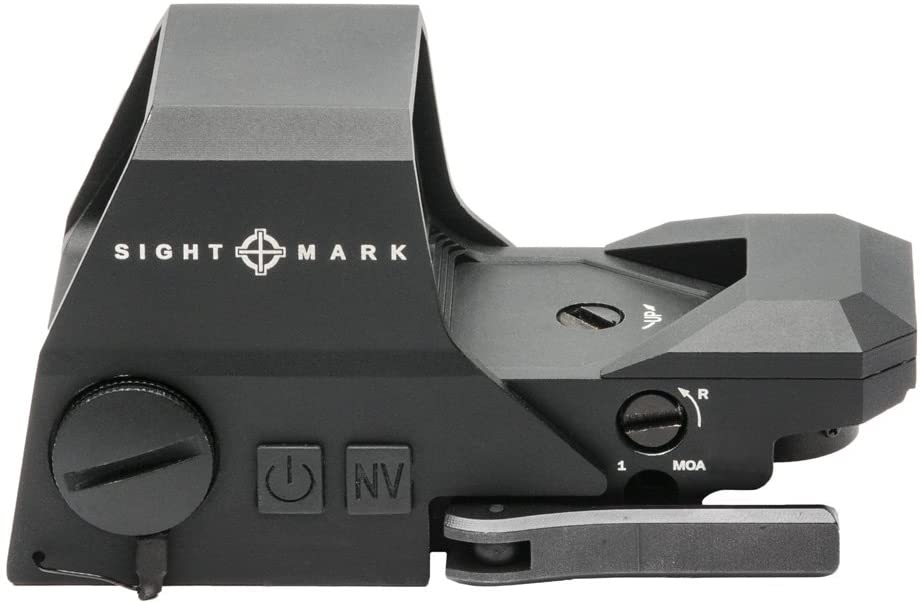

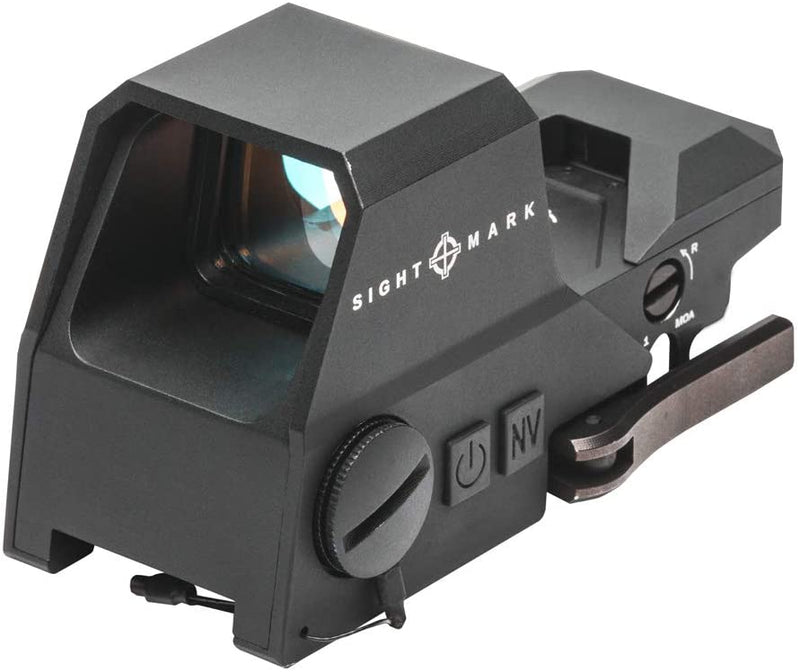

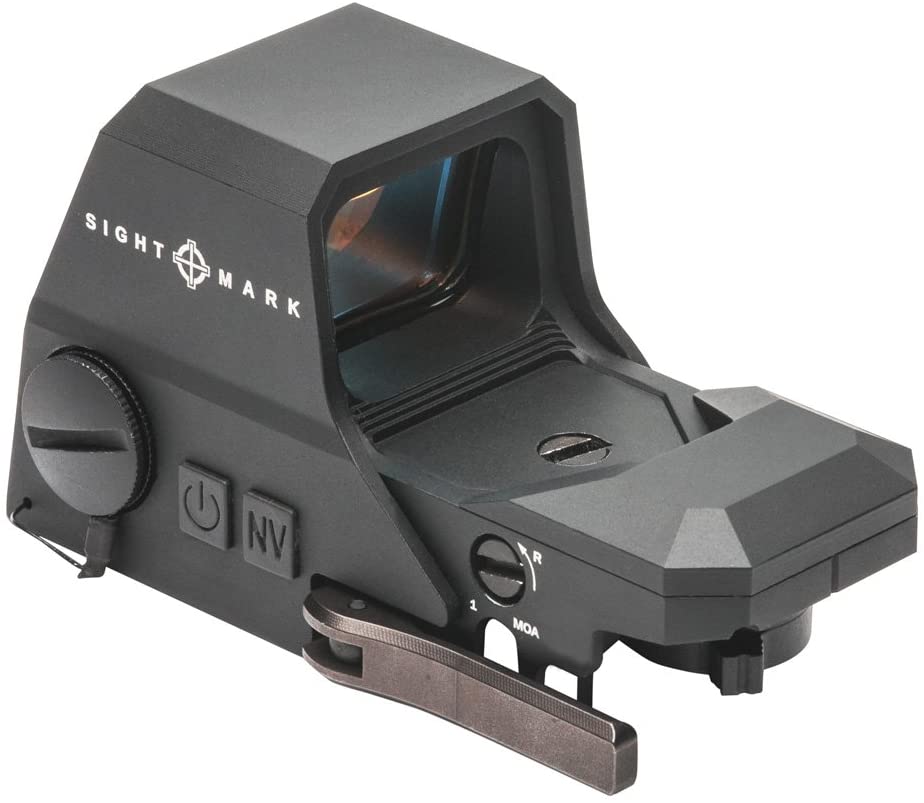

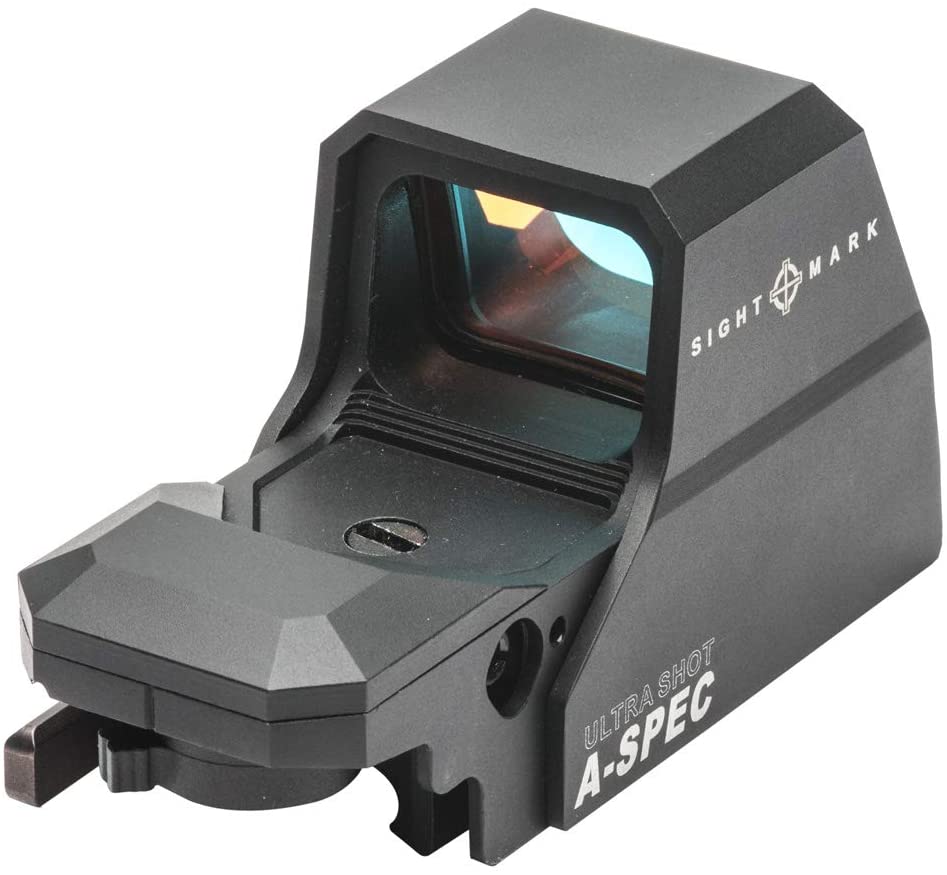

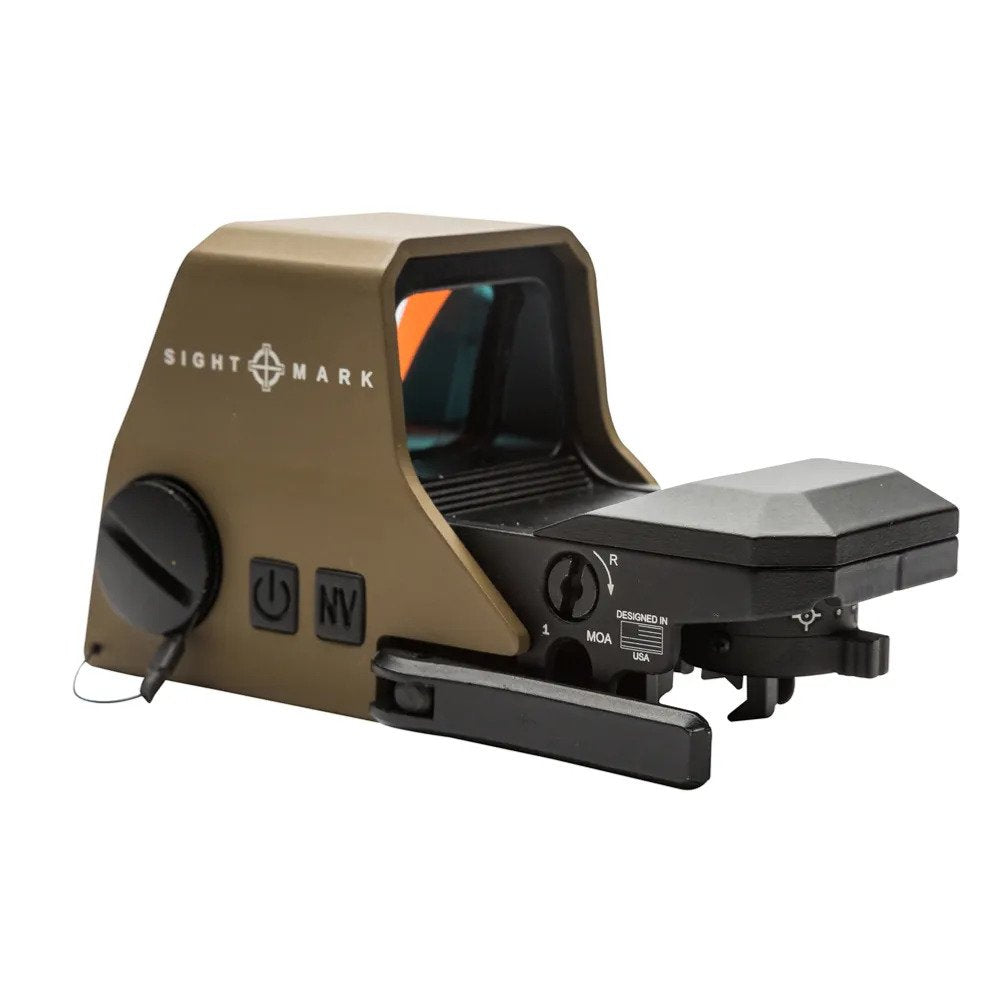

Designed to deliver advanced optic performance, the Sightmark Ultra Shot A-Spec Reflex Sight promises repeatable accuracy and ultra-fast target acquisition for recreational, professional and competition shooting environments. The Ultra Shot A-Spec’s premium wide-angle lens system with scratch resistant and anti-reflective red coating, 4 illuminated red reticle options with 10 brightness settings, parallax correction (beyond 10 yards) and unlimited eye relief deliver a crisp, robust field of view and uncompromising reliability, even when perfect sight alignment isn’t an option. Built tough, the Ultra Shot A-Spec Reflex Sight is shock proof, IP55 weather-resistant, recoil rated up to .50 BMG and constructed of a rugged, lightweight 6061-T6 aluminum body and protective shield. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. The Ultra Shot A-Spec Reflex Sight also features a low battery indicator, digital switch controls, 1-hour auto shut-off, quick-detach picatinny mount and Sightmark’s lifetime warranty. The Ultra Shot A-Spec Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and neoprene cover.
US Pat. D872219
US Pat. D872219S1
- XT-3 Magnifier compatible
- Advanced AR coated
- scratch resistant lens system
- Night vision brightness modes
- 4 red reticle options with 10 brightness settings
- Quick detach mount for easy on/off application
- Auto-off capabilities
- Low battery indicator
- Recoil rated up to .50 BMG
- Up to 2000 hours of battery life
- Parallax corrected optical system

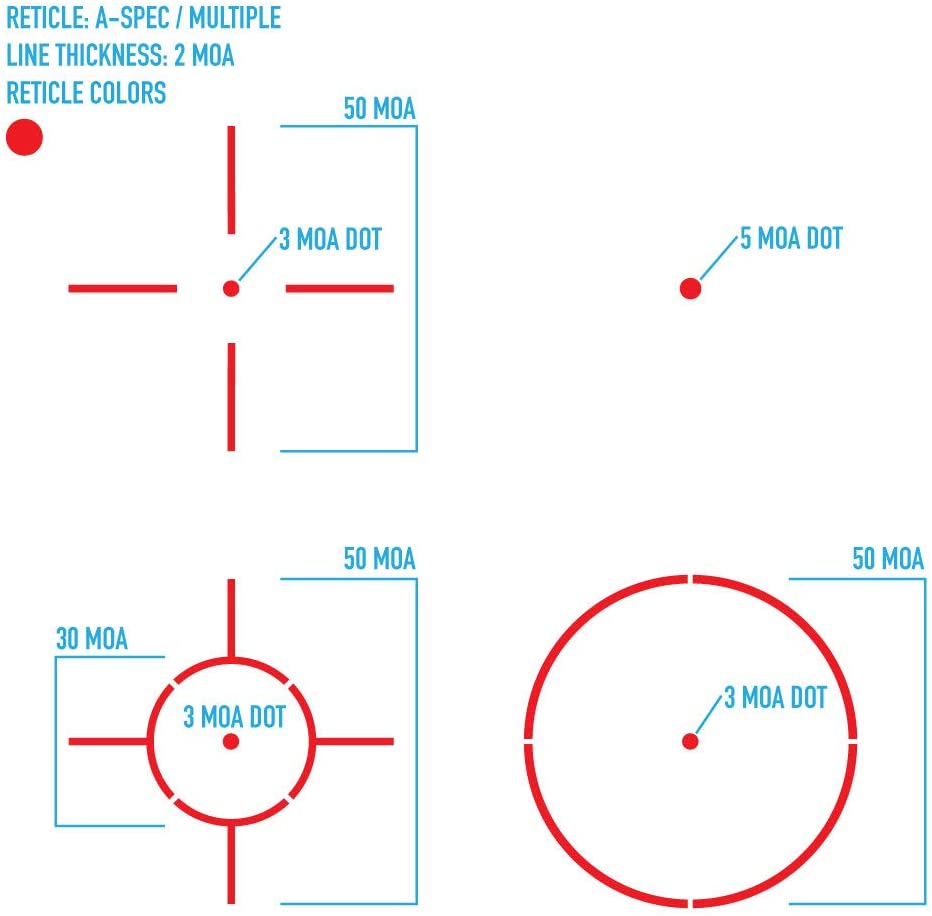

|Reticle, Type||4 Pattern - 5 MOA dot, 3 MOA dot with 50 MOA circle, 3 MOA dot with 50 MOA crosshair, 3 MOA dot with 30 MOA circle/crosshair (subtensions total 50 MOA)|
|Reticle Brightness Setting||Off, 1-10, NV|
|Objective overall dimension (mm)||33x24 mm|
|Eye relief (in/mm)||Unlimited|
|Elevation Range of Adjustment||120 MOA|
|Windage Range of Adjustment||120 MOA|
|Adjustment Value||1 MOA|
|Parallax Setting||10 / 9.1 yd./m|
|Body Material||Aluminum 6061-T6|
|Maximum Recoil||.50 BMG Max caliber|
|IP Rating (waterproof)||IP55 - water resistant|
|Shock-proof||Yes, 8ft / 2.4m|
|Lens Coating||AR red|
|Battery Life||200-2,000 Hours|
|Battery Voltage, V||3 V|
|Operating temperature, F/C||-22 to 160 / -30 to 71 F/C|
|Length (in/mm)||4.33 / 110 in/mm|
|Width (in/mm)||1.96 / 50 in/mm|
|Height (in/mm)||2.28 / 58 in/mm|
|Weight, oz.||10.8 oz.|
