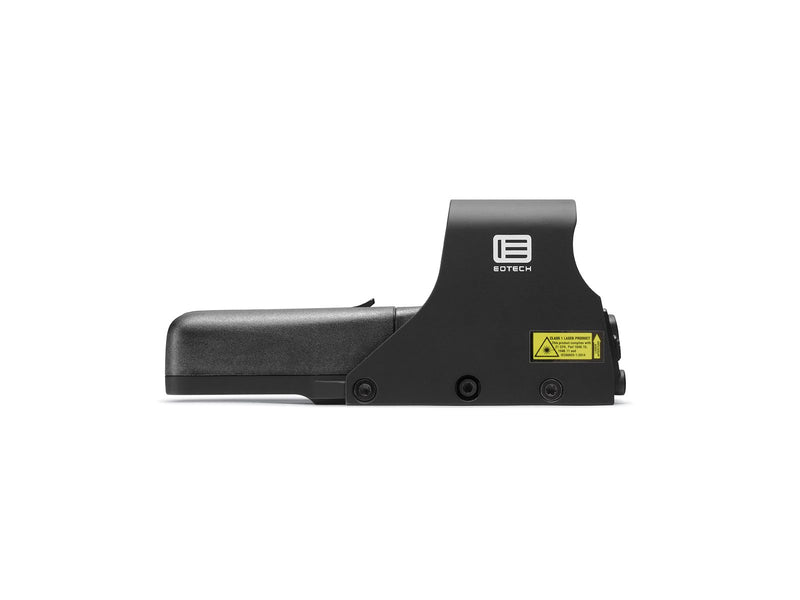

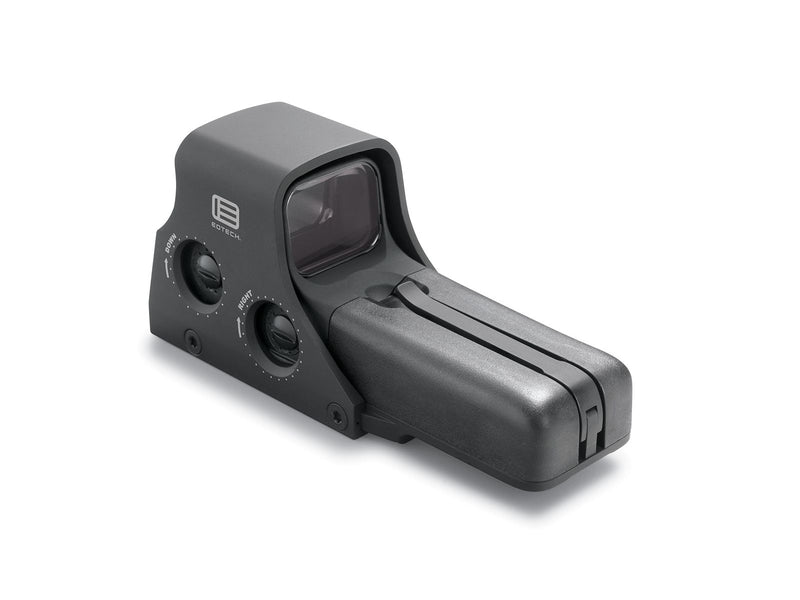

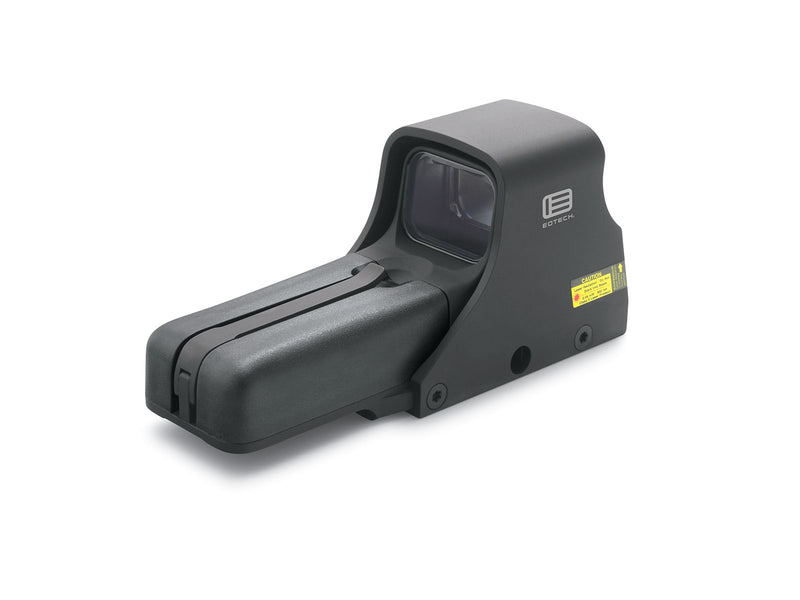

EOTech's black Model 512 Holographic Weapon Sight (HWS) is designed to allow fast and easy target acquisition and tracking, with small to medium caliber platforms, for close to medium encounters. It features an illuminated holographic red dot reticle, anti-reflection multicoated optics, and waterproof. The sight has a 90' field of view at 100 yards and an unlimited eye relief to ensure users maintain their situational awareness, especially when moving quickly.
To get users on target is 0.5 MOA per click impact point correction, with ±40 MOA windage and elevation adjustments to compensate for most conditions or situations. Complementing the sight's performance is a rugged housing made of a lightweight and durable aluminum alloy with a black anodized finish. It is O-ring sealed to make it waterproof and submersible to a depth of 10', with a fog-resistant interior. The controls are all inset so there are no protruding knobs or rings to obscure targets. An integrated Picatinny/Weaver rail mount allows it to be quickly removed and re-installed without the need to be re-zeroed.
- 1x magnification
- 1.2x0.85" window
- Anti-reflective coated optics
- 90' field of view at 100 yd.
- Front window: 0.125" thick glass
- Rear window: 0.1875" laminate
- Red-Dot reticle
- 1 MOA center aiming dot
- 68 MOA circle with quadrant ticks
- Illumination: 0.08mW/650nm Class II laser
- 20 selectable intensity levels
Non-Night Vision Compatible
L X W X H
5.6" x 2.0" x 2.5" (142.2 x 51 x 64 mm)
11.5oz (325 g)
10ft. (3 m) depth
1" Weaver or MIL-STD-1913 rail
Windage & Elevation Adjustment
0.5 MOA per click
20 daylight settings
2 x 1.5 V AA batteries - Supports lithium, alkaline or rechargeable
Lithium: 2,500 continuous hours at nominal setting 12 at room temperature
Alkaline: 2,200 continuous hours at nominal setting 12 at room temperature
Country of Origin
Made in USA
